Boiler-Free Corrugated Board Production Line
Room-temperature / low-temperature boiler-free corrugated board production line technology with flute-to-flute (peak-to-peak) board structure. Single facer speed up to 300+ m/min.
Product Catalog

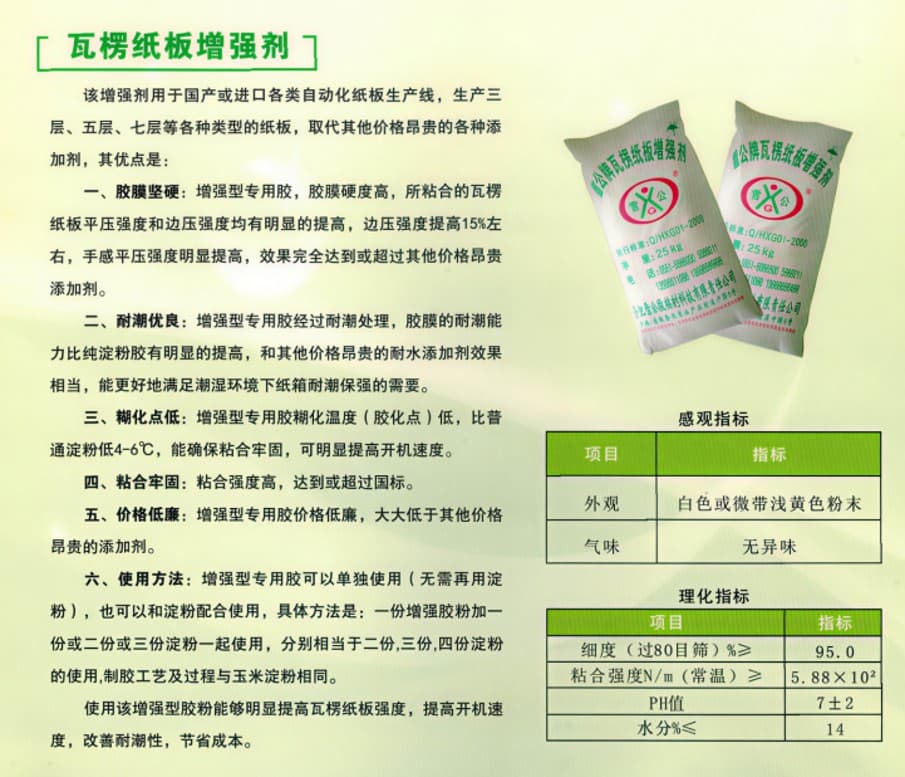

Corrugated Board Strengthening Agent
Reinforcing adhesive powder for 3-, 5-, and 7-ply automatic lines. About 15% higher ECT, gel point ~4–6°C lower; use alone or blend with starch.
Corrugated Board Strengthening Agent
Key Features
- For 3-, 5-, and 7-ply automatic lines
- ECT gain about 15%
- Gel point ~4–6°C lower than common starch
- Can replace expensive reinforcing additives
- Use alone or blend with starch
- Improves moisture resistance and start-up speed
- Lower cost than many specialty strengtheners
Product Description
Xuegong corrugated board strengthening agent is used on domestic and imported automatic board lines for 3-, 5-, and 7-ply production and can replace expensive additives.
Stronger film: after reinforcement, film hardness rises and flat/edge crush improve clearly; edge crush strength increases by about 15%, with better hand stiffness — performance at or above other costly additives.
Excellent moisture resistance: better than pure starch treated with water-resistant additives, supporting cartons in humid environments.
Low gelatinization point: about 4–6°C lower than common starch, helping strong bonding and higher start-up speed at the same pressure and temperature.
Flexible use: alone (no extra starch) or blended with 1–3 parts starch — 1 part strengthening powder ≈ 2–4 parts starch effect; cook process same as corn starch. Improves strength, speed, moisture resistance, and cost.
Technical Specifications
| ECT Gain | About 15% |
| Gel Point | ~4–6°C lower than common starch |
| Blend Ratio | Optional blend with 1–3 parts starch |
| Board Types | 3-ply, 5-ply, 7-ply, etc. |
| Packaging | 25 kg bags |
| Standards Reference | Enterprise standard Q/HXG01-2006, etc. |
Related Products
Formaldehyde-Free Resin-Based Adhesive Series
Green, water-based formaldehyde-free resin adhesive powders for paper tubes, corner protectors, and honeycomb board facing. Replaces expensive white latex adhesive.
Alkali-Free Adhesive Series
Alkali-free laminating adhesive, core adhesive, and facing adhesive — eliminating caustic soda for safer, greener, and more cost-effective production.
